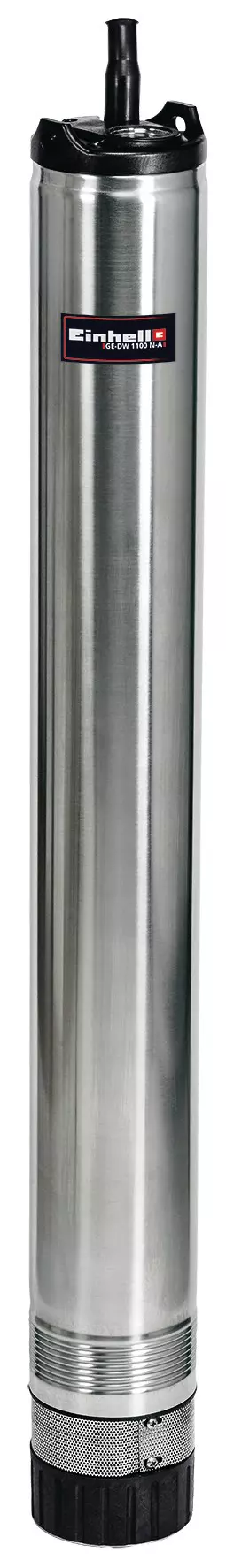

Deep Well Pump

GE-DW 1100 N-A

Item no.: 4170935 EAN: 4006825628623
  • Automatic function
  • Dry running protection
  • Robust pressure connector with stainless steel insert
  • Pump housing made of rust-proof high-grade steel

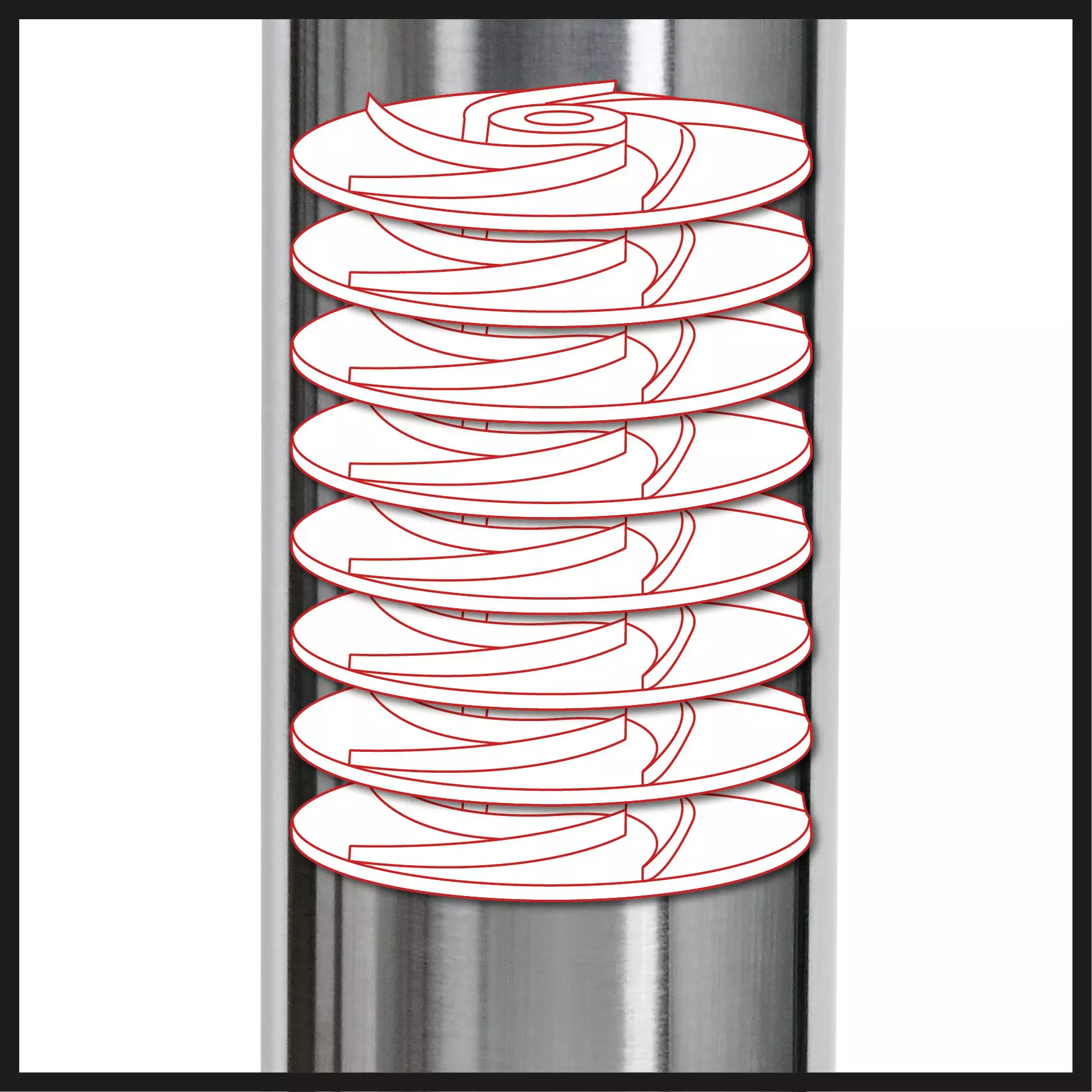

  • Multi-stage pump wheels for high working pressure
  • With integrated non-return valve

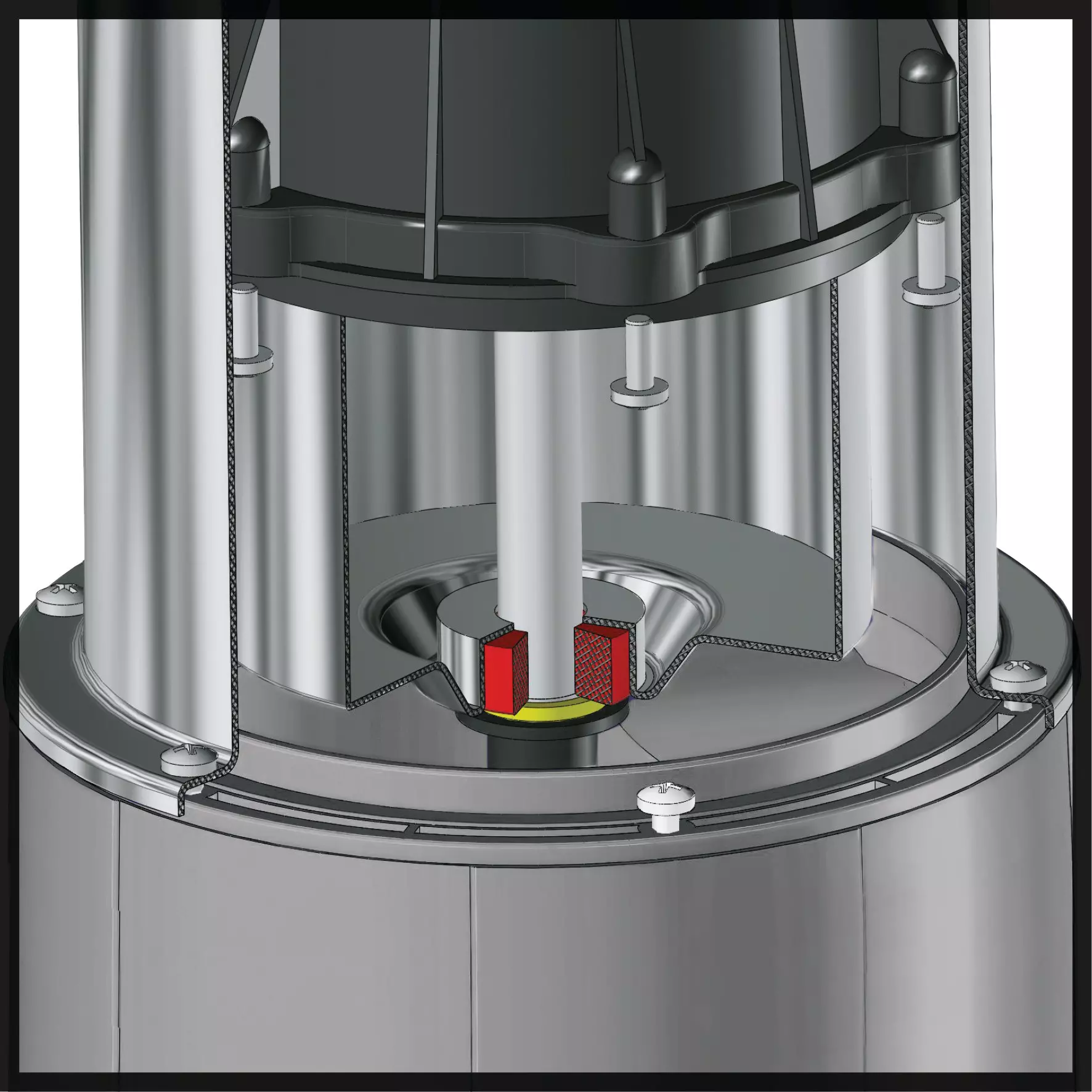

  • High-quality mechanical seal for a long service life

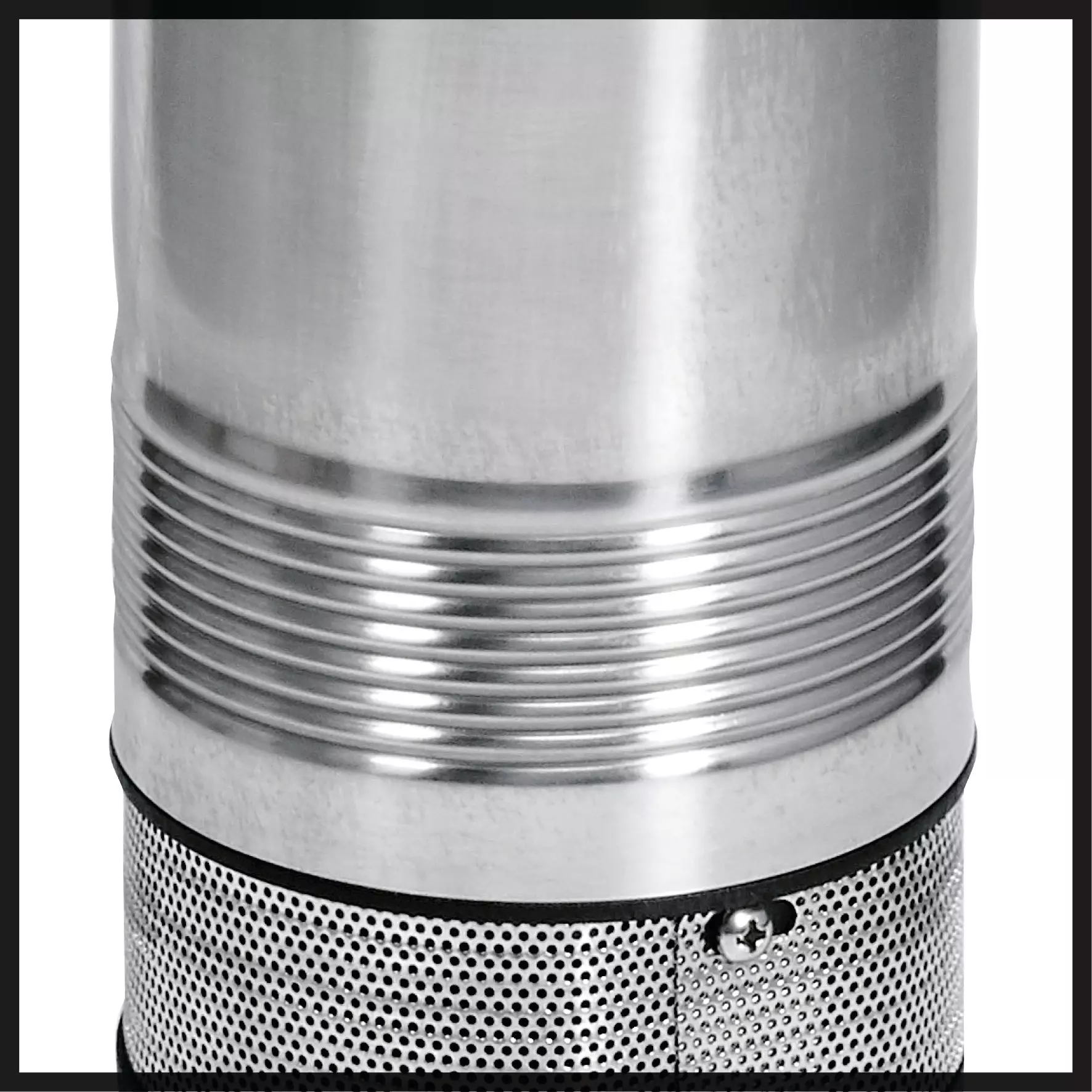

  • Stainless steel dirt sieve
  • Easily reachable hose connection on the pump's topside
  • 2 suspension eyelets

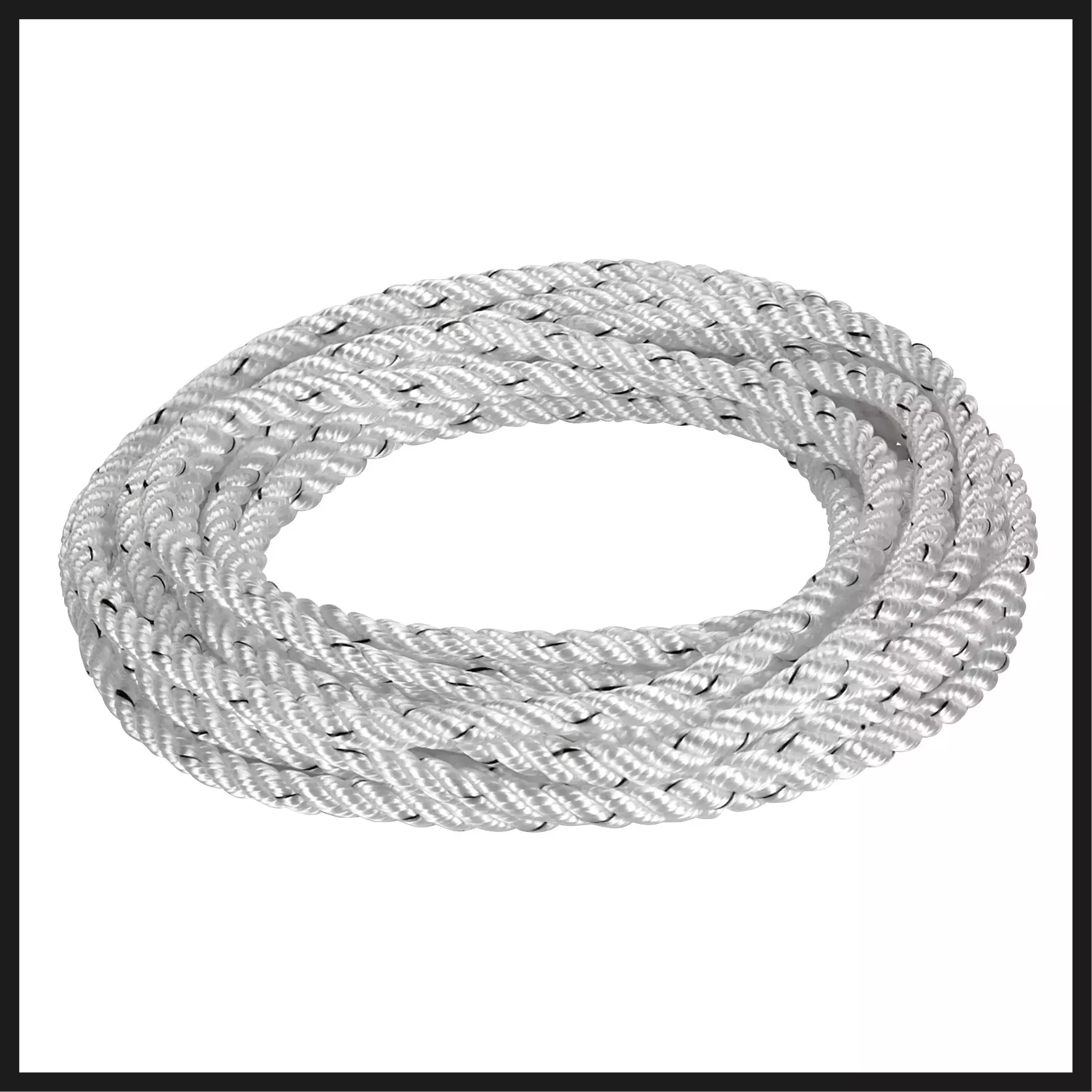

  • 22 m rope
See more information
Show less information
einhell-expert-deep-well-pump-4170935-productimage-001
Article description

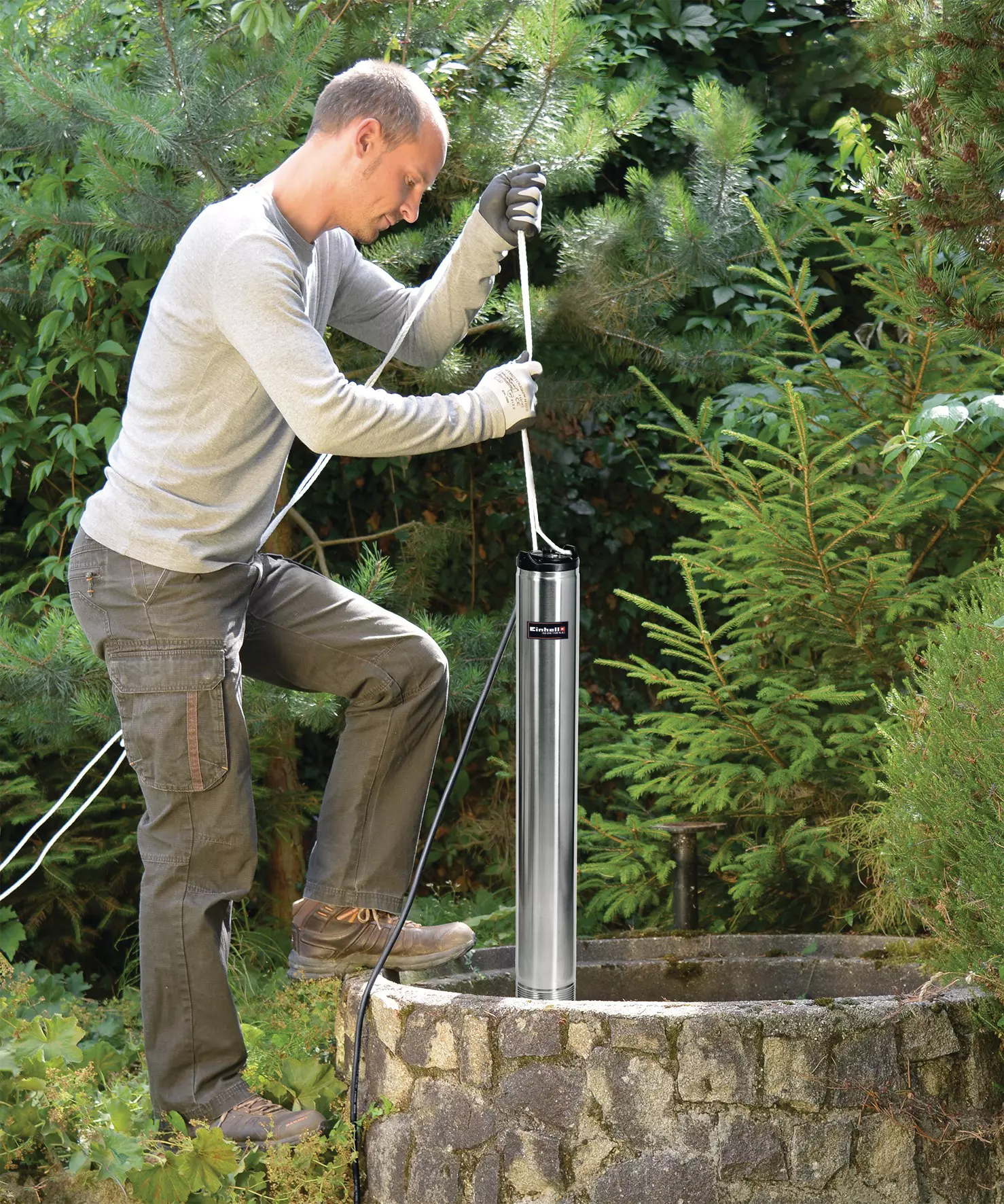

The Einhell GE-DW 1100 N-A deep well pump with automatic function switches the device on automatically when water is required and switches it off again automatically if the withdrawal of the water is interrupted. The pump has an 8-stage impeller system to generate the pressure required for pumping clean water from deeper lying water reservoirs and wells up to a maximum height of 55 m. Thanks to the automatic function and the high delivery pressure, this pump is ideally suitable for garden watering systems and for domestic water supplies, especially for toilet flushing systems, washing machines or even washing the car. Its compact and slimline design makes it suitable for use in constricted pipes as well. The maximum immersion depth is 19 meters and for flexible use the pump has a 22 meter power cable and a holding rope included with it. With a powerful 1100 W motor the pump generates a maximum delivery rate of up to 6,000 liters per hour. The submersible pressure pump not only gives a solid impression on the outside, it is particularly robust in design and has important safety features. The housing and dirt screen made of rust-proof stainless steel, the pressure connector with stainless steel insert and the mechanical seal provide the basis for a long service life. The integrated dry-run safeguard protects the pump against damage if the water supply is interrupted. The hose connection, with a size of 33.3 mm (1" male thread), is easily accessible on the top of the pump. The integrated non-return valve here prevents the water flowing back.

Technical details

Max. delivery height55 m
Max. delivery pressure5.5 bar
Max. delivery rate6000 l/h
Max. immersion depth19 m
Max. water temperature35 °C
Power1100 W
Power cable length22 m
Pressure connection type33,3 mm - 1 "
Product weight9.81 Kg
